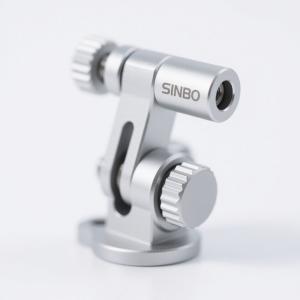

Industrial Robot High Stability Adjustable Angle Vision Camera Bracket
Precision Positioning Flexible Installation
This industrial-grade vision camera bracket is designed for robot end-effectors, constructed with high-strength aluminum alloy and featuring an adjustable angle structure that enables 360° horizontal rotation and ±90° tilt adjustment. The bracket is equipped with quick-mount interfaces compatible with major industrial camera brands such as Allied Vision, Basler, and FLIR, making it suitable for precision inspection, positioning guidance, and quality control in industrial applications.
Features
- Multi-angle Precision Adjustment: Supports 360° horizontal rotation and ±90° tilt adjustment, with clear division markers for precise angular positioning and repeatability.
- High Stability Structure: Utilizes triangular support structure and high-strength aluminum alloy material to ensure stability in industrial vibration environments and reduce camera shake.
- Wide Compatibility: Equipped with 1/4"-20 standard mounting holes, compatible with most industrial camera models, and offers multiple mounting interface options.
- Quick Installation and Removal: Features a quick-release design to simplify camera replacement and maintenance procedures, improving production efficiency.
- Error-proof Design: Incorporates a high-stability error-proof mechanism to prevent accidental loosening in high-speed motion or vibrating environments.
Technical Parameters
| Parameter |
Specification |
| Horizontal Rotation Range |
360° |
| Tilt Adjustment Range |
±90° |
| Repeat Positioning Accuracy |
±0.1° |
| Load Capacity |
Up to 3kg |
| Mounting Interface |
1/4"-20 standard threaded hole |
| Material |
Aluminum Alloy |
| Operating Temperature |
-20°C ~ +80°C |
| Protection Level |
IP54 (Dust and splash proof) |
Applications
- Industrial Inspection: For surface defect detection and dimensional measurement of electronic products.
- Robot Guidance: Provides visual positioning for assembly robots.
- Warehousing and Logistics: Package sorting, barcode recognition.
- Automotive Manufacturing: Parts quality inspection, assembly verification.
Customization Services
Customization services are available based on customer requirements, including:
- Bracket design with specific dimensions and angles
- Adaptation of different mounting interfaces
- Special environmental protection treatments (e.g., explosion-proof, high-temperature environments)
Support and Services
- 12-month product warranty
- Technical support hotline and online consultation
- Installation and usage video guides
- On-site debugging support services (optional)
